Pig Launchers & Receivers
Jamison Products, an Allied Reliability brand, supplies pig launchers and receivers built to customer, environmental, and industry standards. Units can be configured around pipeline specifications, closure type, pressure rating, coating, supports, internal trays, and other application-specific requirements.
Engineered Products
Pig Launcher & Receiver Configurations and Product Options
Pig launchers and receivers can be supplied as individual vessels or skid-mounted systems to support pipeline maintenance, product recovery, and process efficiency.
Pig Launchers
Vessels used to introduce a cleaning, inspection, separation, or batching pig into a pipeline without interrupting normal product flow, where the system is designed for pigging.
Data Sheet – Pig Launchers (PDF, 315 KB)
Data Sheet – Pig Launchers, Extended (PDF, 825 KB)
Pig Receivers
Receiving traps designed to capture the pig after it has traveled through the pipeline, supporting cleaning, inspection, and product separation workflows.
Data Sheet – Pig Receivers (PDF, 310 KB)
Data Sheet – Pig Receivers, Extended (PDF, 910 KB)

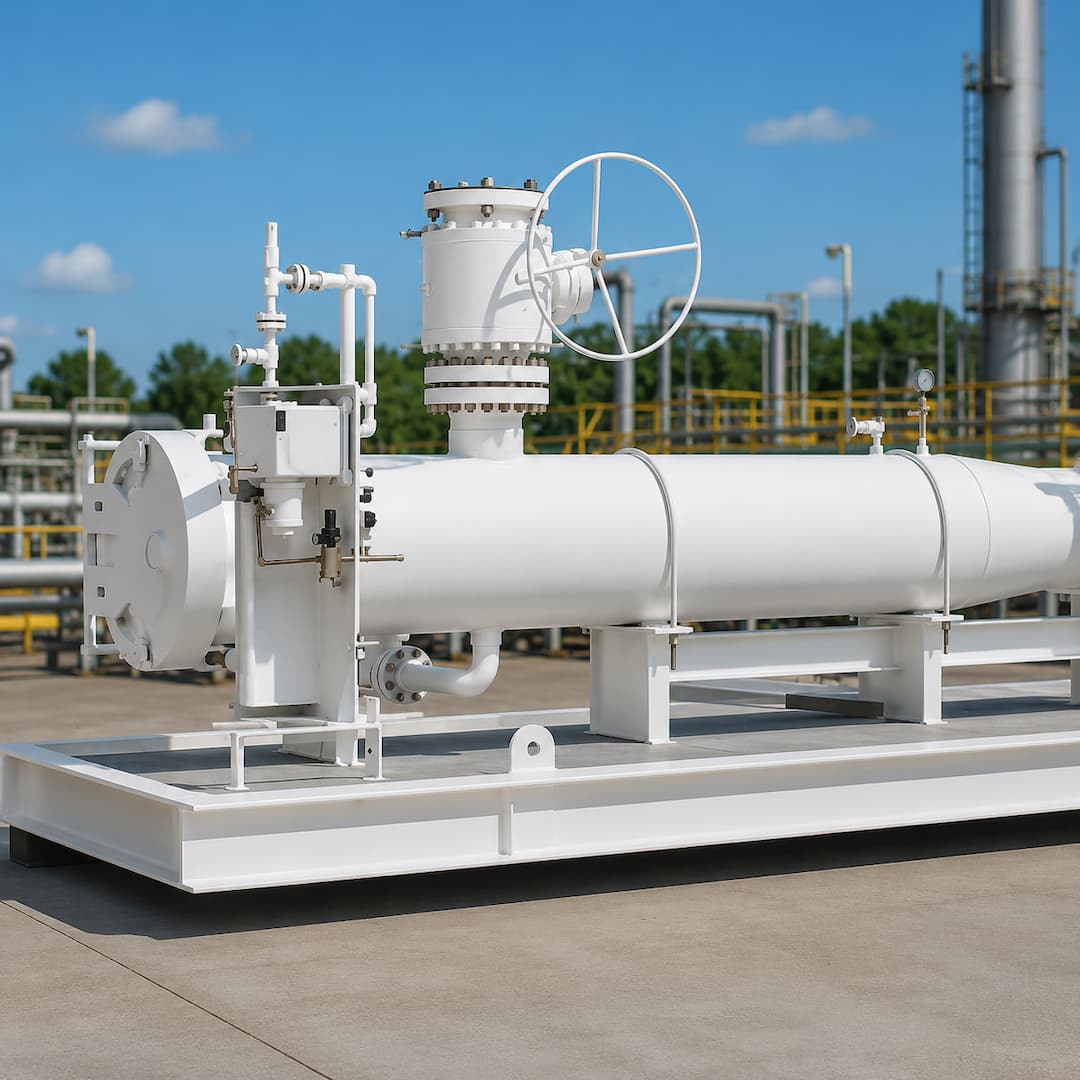

Skid-Mounted Pigging Systems
Integrated launcher or receiver assemblies supplied on skids for applications that require packaged equipment and easier field installation.
Custom Options
- Quick Open T-Bolt Closure
- Tube Turns Cam-Lock handles or Breakover wrench style bolts.
- Materials can be Stainless Steel or Alloy Materials
- Cover Davit and/or Lifting Lug
- ASME B31.3, ASME B31.8 or ASME VIII Div 1
- ASME U-Stamp Code Certification
- Support Legs or Skirt
- DP gauge connections
- DP gauge/switch (fitted)
- Special Bolting
- Alternate elastomer seals to suit various applications
- Weld Neck Flanged connections
- Larger size basket or finer bag liners
- Additional ancillary connections
- Heavy duty baskets and wedge wire
- Special coatings
SPECIFICATIONS
Typical Specifications
| Size Range | 4” – 36” |
| Pressure Ratings / Connections | ANSI 150# – 2500# RF or RTJ flanges |
| Design Codes | Designed to ASME VIII Div. 1 and AWWA, ANSI B31.3, B31.4, and B31.8 |
| Supply Options | Supplied individually or skid-mounted |
THE CHALLENGE
Pipeline Pigging Solutions Built Around Operating, Cleaning, and Inspection Needs
Pipeline systems often need to be cleaned, inspected, emptied, or switched between products without extensive flushing or production disruption. Pigging helps maintenance and operations teams reduce residual product, support product changeovers, and maintain cleaner transfer lines.
- Remove contaminants, liquids, deposits, and residual product from pipelines.
- Separate products in multi-product pipelines to reduce mixing and quality risks.
- Improve batch processing efficiency by clearing lines between transfers.
- Support inspection of pipeline condition using appropriate pigging tools.
SERVICES
Related Support for Selection, Engineering, and Fabrication
Allied Reliability and Jamison Products support product selection and execution with practical engineering and fabrication expertise tied to the application.
Application and Product Selection
Application guidance for selecting vessel style, materials, pressure class, connection type, and options.
Custom Engineering and Design
Support for engineered designs built around site requirements, operating conditions, and applicable codes.
Repair and Replacement Planning
Help evaluating replacement needs, spare parts, maintenance access, and future serviceability.
Why JAMISON
Why Source Jamison Products
Jamison Products combines engineered product capability with Allied Reliability’s broader maintenance, reliability, and asset performance perspective. Customers get more than a catalog item; they get product support focused on operating conditions, code requirements, maintainability, and long-term fit.
Custom-built designs aligned to pipeline specifications and operating requirements.
Hydrostatic and NDT testing to support code compliance and traceability expectations.
Engineering support for closures, coatings, vessel supports, and skid-mounted configurations.
Application-focused support for selection, specification, and request-for-quote discussions.
