Horizontal Basket Strainers
Protect pumps, meters, compressors, and downstream components with Jamison Products horizontal basket strainers designed for pipeline filtration applications.
From Jamison Products, an Allied Reliability Brand
Jamison Products, an Allied Reliability brand, designs and supplies horizontal basket strainers for piping systems where debris removal, equipment protection, and maintenance access are important to reliable operation. Configurations can be standard or custom-engineered to meet operating conditions.
Engineered Products

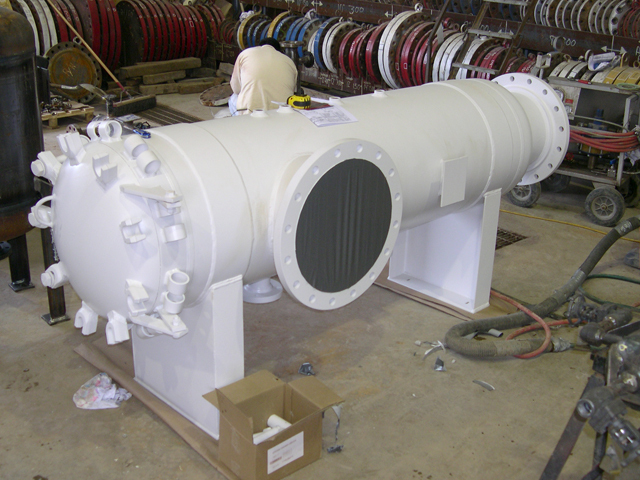

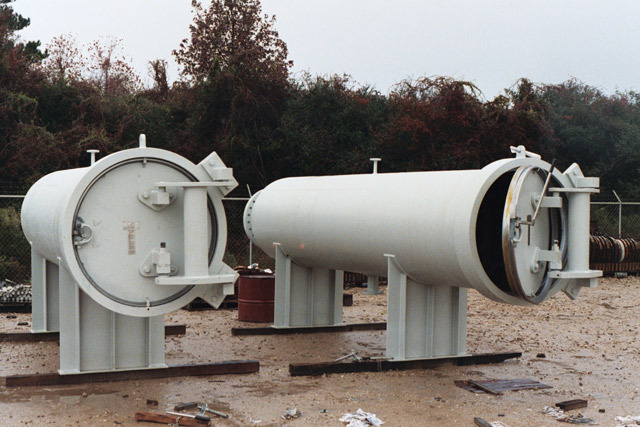

Horizontal Basket Strainer
A vital component in any piping system is the horizontal basket strainer which not only protects the Pump/Meter/Compressor but the additional components downstream. Jamison Products is a worldwide leader in horizontal basket strainers and duplex strainers, with patented designs to improve system performance.
Jamison Products is involved in providing and testing strainers for the API Ad Hoc Committee on Flow Conditioning For Turbine Meters. This has contributed to the development of a new basket strainer, the Jamison Posi-Lock™, which is explicitly designed to improve process performance and prevent bypass caused by movement of the strainer basket in service.
Standard Features
- Bolted Blind Cover
- Carbon Steel body
- 1/8” Perforated SS304 Basket
- NPT Vent and Drain
- ANSI B31.4 Design
- O-Ring Horizontal
- Designed for 285 psi at 100 Degrees F
Options
- Quick Open T-Bolt Closure
- Tube Turns Cam-Lock handles or Break over wrench-style bolts.
- Materials can be Stainless Steel or Alloy Materials
- Cover Davit and/or Lifting Lug
- ASME B31.3, ASME B31.8 or ASME VIII Div 1
- ASME U-Stamp Code Certification
- Support Legs or Skirt
- DP gauge connections
- DP gauge/switch (fitted)
- Special Bolting
- Alternate elastomer seals to suit various applications
- Weld Neck Flanged connections
- Larger perforation size basket or finer mesh liners
- Additional ancillary connections
- Heavy-duty baskets and wedge wire
- Special coatings
Services
Support for Selection, Fabrication, and Replacement Components
Application and Product Selection Support
Application guidance for selecting the right basket strainer configuration, connection type, filtration level, materials, and cover style.
Custom Design and Manufacturing
Support for fabricated vessels, application-specific baskets, liners, closures, ancillary connections, and material requirements.
Certification and Documentation Support
Support for spare or replacement baskets, mesh liners, heavy-duty baskets, and related strainer components.
THE CHALLENGE
Pipeline Protection Challenge
Horizontal piping systems need effective debris capture without creating unnecessary maintenance complexity. A correctly specified horizontal basket strainer helps protect downstream equipment while supporting practical cleaning and inspection access.
- Debris can damage pumps, meters, compressors, valves, and downstream components.
- Basket movement or bypass can reduce filtration effectiveness in demanding service.
- Poor access or mismatched configuration can increase cleaning time and maintenance burden.
Why jamison products
Engineered Solutions. Trusted Performance.
Jamison Products designs and manufactures engineered strainers and filtration solutions for demanding industrial applications. Backed by decades of application expertise, we help customers select the right equipment to protect critical assets, improve maintainability, and support long-term process reliability.
- Standard and custom-engineered strainer solutions
- Application expertise across pumps, compressors, meters, pipelines, and process equipment
- Multiple vessel designs, materials, closure styles, baskets, liners, and specialty coatings
- Engineered products built for dependable performance and long service life
