Oil Basket Strainers
A vital component in any oil system is the oil basket strainer which not only protects the Pump/Meter/Compressor but the additional components downstream. Jamison Products is a worldwide leader in heavy and sweet crude oil basket strainers and duplex strainers, with patented designs to improve system performance.
From Jamison Products, an Allied Reliability Brand
Jamison Products is involved in providing and testing strainers for the API Ad Hoc Committee on Flow Conditioning For Turbine Meters. This has contributed to the development of a new basket strainer, the Jamison Posi-Lock™, which is explicitly designed to improve process performance and prevent bypass caused by movement of the strainer basket in service.
Engineered Products
Configuration and Product Options
Available configurations may include standard and fabricated options depending on application requirements, operating conditions, and maintenance access needs.

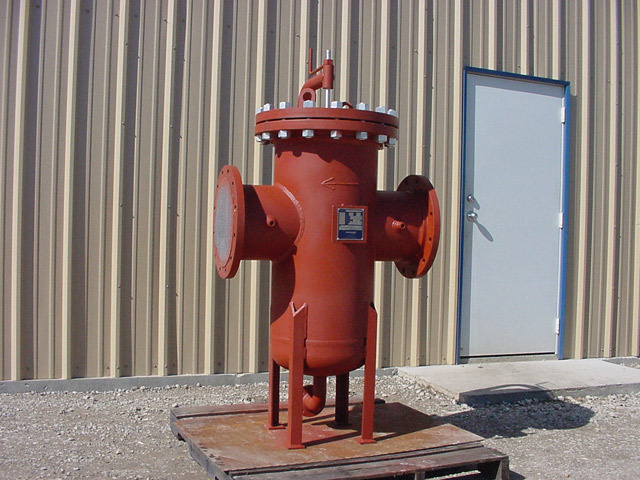

Fabricated Crue Oil Strainer
Fabricated basket strainer configuration for crude oil service and application-specific operating conditions.
Pipeline Crude Oil Strainer
Pipeline-oriented oil strainer configuration used to protect rotating equipment, meters, compressors, and downstream components.
Fabricated Basket Strainer Specifications
The following specifications are included for fabricated basket strainer applications and should be confirmed against final operating conditions during product selection.
| Specification | Details |
| Sizes and ratings | 1″ – 48″; ANSI 150# to 2500# RF, RTJ flanges, and BW connections. |
| Design codes | Designed to ASME VIII Div. 1 with U-stamp; ANSI B31.3, B31.4, and B31.8. |
| Materials | Carbon steel, stainless steel, and special alloys. |
| Cover options | Bolted blind flange or quick opening covers. |
| Filtration | 50 micron through 1″ filtration. |
Standard Features and Options
Jamison Products Posi-Lock™ basket design is available to help improve process performance and reduce bypass risk caused by basket movement in service.
Special bolting, alternate elastomer seals, weld neck flanged connections, ancillary connections, heavy-duty baskets, wedge wire, and special coatings
| Standard Features | Common Options |
| Bolted blind cover | Quick open T-bolt closure or bolted closure, depending on configuration |
| Carbon steel body | Tube Turns Cam-Lock handles or break-over wrench-style bolts |
| 1/8″ perforated SS304 basket | Stainless steel or alloy material options |
| NPT vent and drain | Cover davit and/or lifting lug |
| ANSI B31.4 design | ASME B31.3, ASME B31.8, or ASME VIII Div. 1 design options |
| O-ring oil gasket | ASME U-stamp code certification |
| Designed for 285 psi at 100 degrees F | Support legs or skirt |
| DP gauge connections or fitted DP gauge/switch |
Services
Support for selection, fabrication, and replacement components.
Product Selection Support
Application guidance for selecting the right basket strainer configuration, connection type, filtration level, materials, and cover style.
Customer Engineering and Fabrication
Support for fabricated vessels, application-specific baskets, liners, closures, ancillary connections, and material requirements.
Replacement Baskets and Screens
Support for spare or replacement baskets, mesh liners, heavy-duty baskets, and related strainer components.
THE CHALLENGE
Reduce Debris-Related Risk in Oil Handling and Pipeline Systems
Oil service applications can expose pumps, meters, compressors, and valves to debris that increases wear, disrupts flow, and drives avoidable maintenance. A properly selected oil basket strainer helps remove harmful solids before they reach critical downstream assets.
- Debris can damage pumps, meters, compressors, valves, and downstream components.
- Improper basket fit or movement can create bypass risk and reduce filtration effectiveness.
- Maintenance teams need strainer configurations that match operating pressure, connection style, material compatibility, and cleaning requirements.
