Gas Basket Strainers
Jamison Products gas basket strainers protect pumps, meters, compressors, and downstream components in natural gas and sour gas applications.
From Jamison Products, an Allied Reliability Brand
Jamison Products, an Allied Reliability brand, designs and supplies natural gas and sour gas basket strainers and duplex strainers, including patented designs intended to improve system performance. Jamison Products has participated in strainer testing for the API Ad Hoc Committee on Flow Conditioning for Turbine Meters, contributing to the Jamison Posi-Lock design for reducing bypass caused by basket movement in service.
Engineered Products

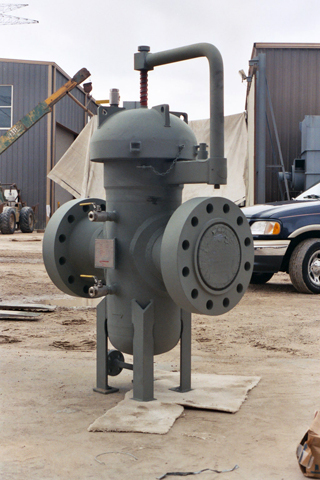

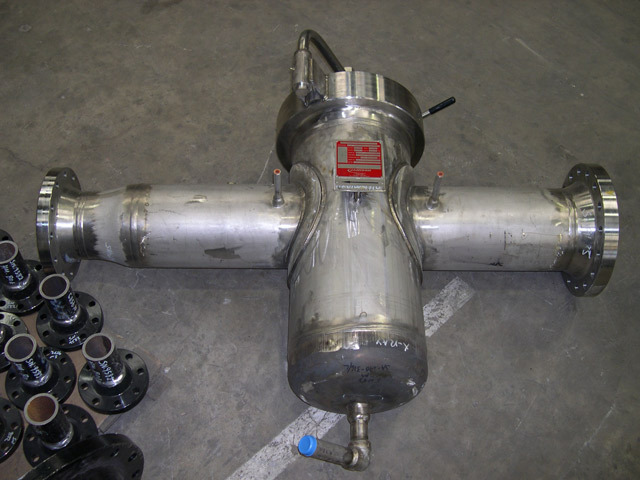

Gas Basket Strainer
A vital component in any gas system is the gas basket strainer which not only protects the Pump/Meter/Compressor but the additional components downstream. Jamison Products is a worldwide leader in natural gas and sour gas basket strainers and duplex strainers, with patented designs to improve system performance.
Jamison Products is involved in providing and testing strainers for the API Ad Hoc Committee on Flow Conditioning for Turbine Meters. This has contributed to the development of a new basket strainer, the Jamison Posi-Lock™, which is explicitly designed to improve process performance and prevent bypass caused by movement of the strainer basket in service.
Standard Features
- Bolted Blind Cover
- Carbon Steel body
- 1/8” Perforated SS304 Basket
- NPT Vent and Drain
- ANSI B31.4 Design
- O-Ring Gasket
- Designed for 285 psi at 100 Degrees F.
Options
- Quick Open T-Bolt Closure
- Tube Turns Cam-Lock handles or Break over wrench-style bolts.
- Materials can be Stainless Steel or Alloy Materials
- Cover Davit and/or Lifting Lug
- ASME B31.3, ASME B31.8 or ASME VIII Div 1
- ASME U-Stamp Code Certification
- Support Legs or Skirt
- DP gauge connections
- DP gauge/switch (fitted)
- Special Bolting
- Alternate elastomer seals to suit various applications
- Weld Neck Flanged connections
- Larger perforation size basket or finer mesh liners
- Additional ancillary connections
- Heavy-duty baskets and wedge wire
- Special coatings
Services
Product support from selection through configuration.
Application and Product Selection Support
Jamison Products can help match strainer style, size, materials, filtration, closure type, and options to the operating conditions.
Custom Design and Manufacturing
Standard and custom-engineered strainers can be supplied for applications that require specific materials, codes, dimensions, or process criteria.
Certification and Documentation Support
Selected fabricated strainers can be offered with or without ASME U-Stamp and/or PED certification when required by the application.
THE CHALLENGE
Protect Critical Equipment from Debris and Filtration-Related Risk
Gas systems can be sensitive to debris, basket movement, and flow-conditioning issues that affect pumps, meters, compressors, and downstream equipment. A properly configured gas basket strainer helps protect assets while supporting the performance requirements of the system.
- Protect gas system components from debris and particulate contamination
- Support basket retention and reduce bypass risk with Jamison Posi-Lock options
- Configure vents, drains, DP connections, seals, closures, supports, and coatings to the application
- Select applicable ASME design and certification options based on service requirements
Why JAMISON PRODUCTS
Engineered Solutions. Trusted Performance.
Jamison Products designs and manufactures engineered strainers and filtration solutions for demanding industrial applications. Backed by decades of application expertise, we help customers select the right equipment to protect critical assets, improve maintainability, and support long-term process reliability.
- Standard and custom-engineered strainer solutions
- Application expertise across pumps, compressors, meters, pipelines, and process equipment
- Multiple vessel designs, materials, closure styles, baskets, liners, and specialty coatings
- Engineered products built for dependable performance and long service life
