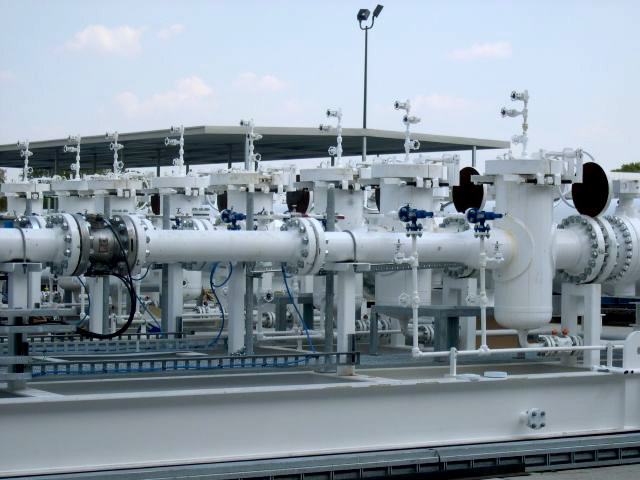

Meter Protection Basket Strainer
Jamison Products meter protection basket strainers help protect meters, provers, and downstream equipment from debris that can disrupt flow measurement and process performance.
From Jamison Products, an Allied Reliability Brand

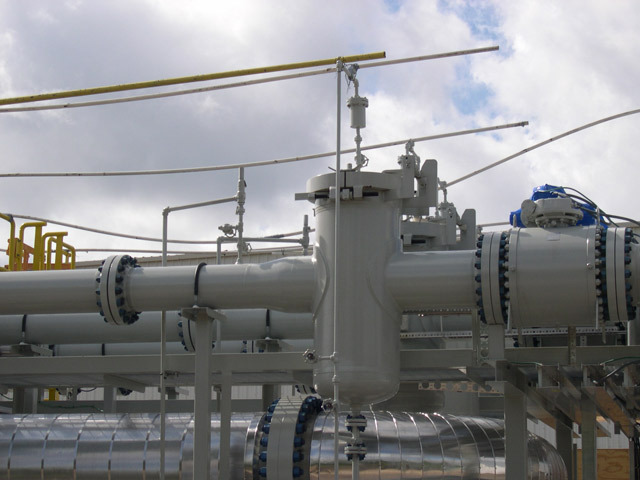

Jamison Products, an Allied Reliability brand, designs and manufactures basket strainers for flow meter systems where debris control, basket retention, and reliable operation are critical. These strainers are available in standard and fabricated configurations to match operating conditions, filtration requirements, and system design needs.
Engineered Products

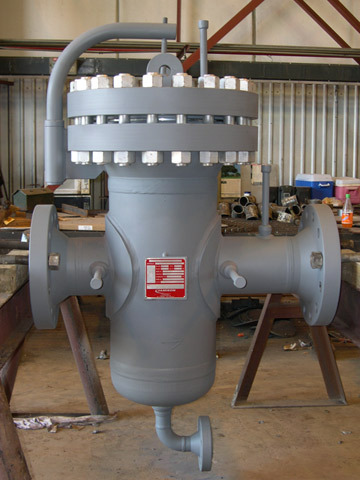

Meter Protection Basket Strainer
A vital component in the flow meter system is the meter protection basket strainer, which protects the Meter and the prover, and additional components downstream. Jamison Products is a worldwide leader in meter protection basket strainers and duplex strainers, with patented designs to improve system performance.
Jamison Products is involved in providing and testing strainers for the API Ad Hoc Committee on Flow Conditioning For Turbine Meters. This has contributed to developing a new basket strainer, the Jamison Posi-Lock™, which is explicitly designed to improve process performance and prevent bypass caused by movement of the strainer basket in service.
Standard Features
- Bolted Blind Cover
- Carbon Steel body
- 1/8” Perforated SS304 Basket
- NPT Vent and Drain
- ANSI B31.4 Design
- O-Ring Gasket
- Designed for 285 psi at 100 Degrees F
Options
- Quick Open T-Bolt Closure
- Tube Turns Cam-Lock handles or Break over wrench-style bolts.
- Materials can be Stainless Steel or Alloy Materials
- Cover Davit and/or Lifting Lug
- ASME B31.3, ASME B31.8 or ASME VIII Div 1
- ASME U-Stamp Code Certification
- Support Legs or Skirt
- DP gauge connections
- DP gauge/switch (fitted)
- Special Bolting
- Alternate elastomer seals to suit various applications
- Weld Neck Flanged connections
- Larger perforation size basket or finer mesh liners
- Additional ancillary connections
- Heavy duty baskets and wedge wire
- Special coatings
Services
Support for Selection, Fabrication, and Replacement Components
Application and Product Selection Support
Application guidance for selecting the right basket strainer configuration, connection type, filtration level, materials, and cover style.
Custom Design and Manufacturing
Support for fabricated vessels, application-specific baskets, liners, closures, ancillary connections, and material requirements.
Certification and Documentation Support
Support for spare or replacement baskets, mesh liners, heavy-duty baskets, and related strainer components.
THE CHALLENGE
Protect Flow Measurement Assets from Contamination and Basket Bypass
Metering systems can be sensitive to debris, basket movement, and upstream contaminants. If solids reach meters, provers, pumps, compressors, or control components, the result can be inaccurate measurement, equipment damage, unplanned service work, and reduced process confidence.
- Debris can damage pumps, meters, compressors, valves, and downstream components.
- Improper basket fit or movement can create bypass risk and reduce filtration effectiveness.
- Maintenance teams need strainer configurations that match operating pressure, connection style, material compatibility, and cleaning requirements.
Why jamison products
Engineered Solutions. Trusted Performance.
Jamison Products designs and manufactures engineered strainers and filtration solutions for demanding industrial applications. Backed by decades of application expertise, we help customers select the right equipment to protect critical assets, improve maintainability, and support long-term process reliability.
- Standard and custom-engineered strainer solutions
- Application expertise across pumps, compressors, meters, pipelines, and process equipment
- Multiple vessel designs, materials, closure styles, baskets, liners, and specialty coatings
- Engineered products built for dependable performance and long service life
